Desktop Automatic Screwdriver Machine with Automatic Screw Feeder
Premium Products
Desktop Automatic Screwdriver Machine with Automatic Screw Feeder
1
2
3
4
5
6
Customization :Can be customized
Applicable Industries :Building Material Shops, Machinery Repair Shops, Construction works , Advertising Company
Noice :Low
Marketing Type :Hot Product 2019
Brand Name :Robotsung
Voltage :220V
Usage :Lock screws automatically
Price :$2,100-2,300 / set
machinery test report :Not Available
Condition :New
Warranty of core components :1 Year
Weight (kg) :80
Place of Origin :Guangdong, China
Power :360W
Suitable screw head :Any type of universality
Showroom Location :None
video outgoing-inspection :Provided
warranty :1 Year
MOQ :1 set
core components :Motor
Contact Now

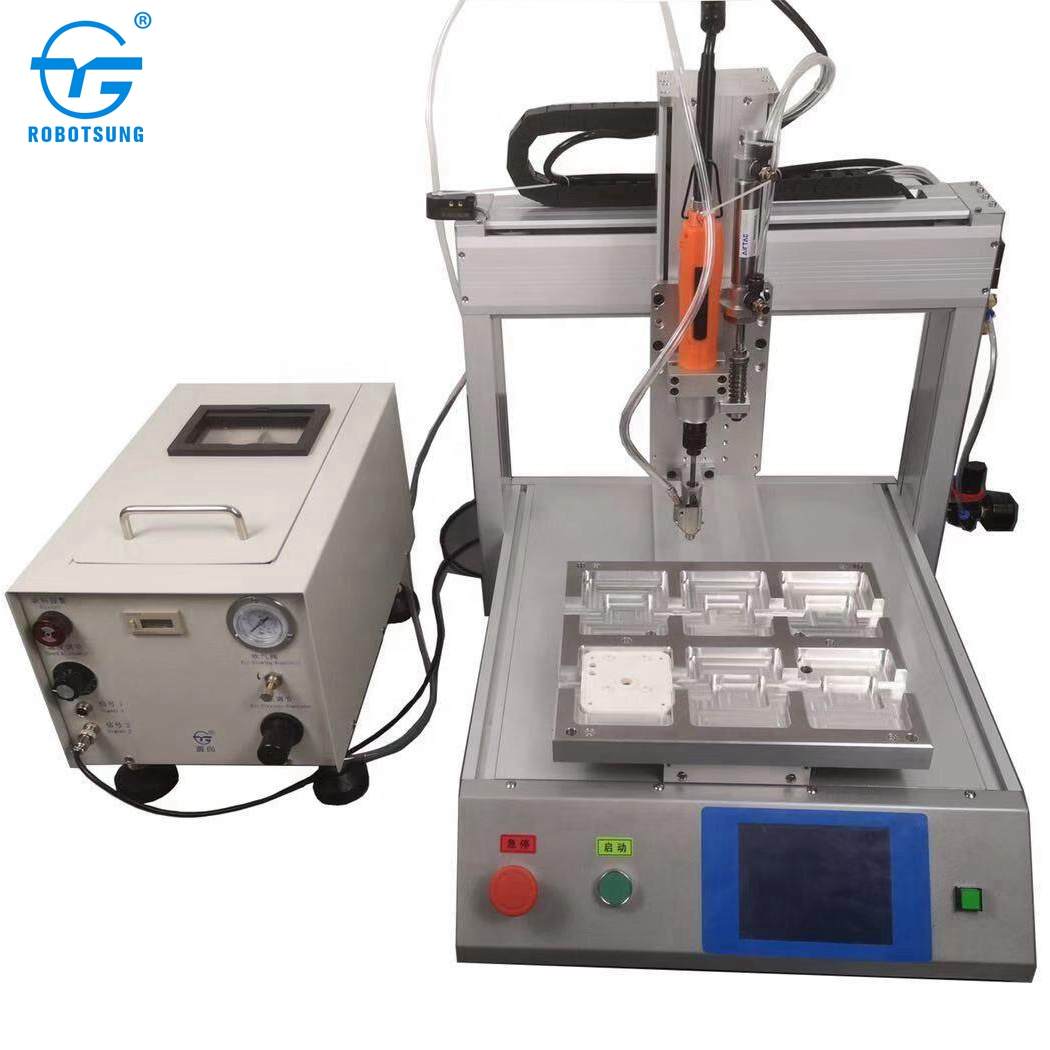

Desktop automatic screwdriver machine, with Screwfeeder
Introduction
This machine include two parts: electric screwdriver and automatic screwfeeder
It puts the automatic screwfeeder together with the electric screwdriver in order to achieve the complement of screw transmission and lock, which can greatly improve the production efficiency and save manpower. Once the screwdriver is lifted after locking a screw, another screw will be sent continuously to continue the operation, which is particular suitable for the work piece of multi-station with the same specification.
Basic Specification
Model
YS-L331E
Voltage
220V
Power
360W
Efficiency
3-5 second/workpiece
Import method of screw
Air-blowing type
Capacity of screw pocket
8000 pcs
Customize
Yes
Scope of application
M1 - M6
Suitable screw head
can be universal
Size(L*W*H)
670*550*610 mm
Weight
60kg
Advantages:
1.High efficiency: multiple axis lock at the same time, 10 screws can be locked in one screw’s period, saving lots of artificial, suitable for mass production.
2.High fastening standard: all screws are locked in one torque at the same time, making sure of the sealing and balance of the product, greatly increase the qualified rate of products.
3.Deep hole locking: the fastening of deep hole screw has inconvenience in observing the hole site, so artificial locking has low efficiency, while multi-axis screw locking machine locates and fastens screws accurately.
Features
1.Wide universality, small in size, can cooperate with production line, convenient for product replacement.
2.High efficiency, the number of electric screwdriver of the Z axis is customizable according to customer’s requirements. Several electric screwdrivers can work at the same time.
3.The Y axis can be made into double-station(that is, double Y axis),so the operator can load alternately.
4.Reduce the labor intensity of workers.
5.High degree of automation, easy operation which the staff can master and debug quickly. .
6.Accurate torsion, convenient adjustment, and the quality of lock is guaranteed.
7.The air-blowing screw is transmitted to the month of the electric screwdriver directly .
8.With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing.
Company Information
Shenzhen Robotsung Automation Technology Co.,Ltdwas established in January, 2001.It is a national high-tech enterprise specializing in the development and production of industrial automation equipment and industrial automation control systems.
