Clear Epoxy Dome Sticker Making Machine Two Component Glue Doming Machine
Premium Products
Clear Epoxy Dome Sticker Making Machine Two Component Glue Doming Machine
video outgoing-inspection :Provided
Applicable Industries :Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Printing Shops, Construction worksﾠ, Energy & Mining, Food & Beverage Shops, Other, Advertising Company
warranty :1 Year
Showroom Location :None
core components :Motor, Pump
Price :$3,600-3,800 / set
Warranty of core components :1 Year
Marketing Type :Ordinary Product
Place of Origin :Guangdong, China
machinery test report :Provided
MOQ :1 set
Condition :New
Local Service Location :None
Brand Name :Robotsung
Weight (kg) :80
Contact Now
Clear Epoxy Dome Sticker making machine Two component mixer/dispensing machine
Application
Chevrons, fridge magnets, key chains, power supply, cell phone, energy saving light, LED, DVD, DC, Switch, Connector, relay and other industries needing fluid glue solder.
Applicable objects: Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.
Glue type
Silica gel, EMI conductive adhesive, UV glue, AB glue, glue, epoxy adhesive, sealant, hot glue, grease, glue, red glue, silver paste, thermal paste, solder paste, transparent paint,
Feature
1 English panel, easy operation.
2.Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
3. Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
4. Satisfy high quality glue dispensing by adjusting the parameters of screw
5. Precise stepper motor, numerical control available
6. Applied to fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
7.According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.
Specification
Model
YS-D551-X
Working area(X/Y/Zmm)
500/500/100
Max. Speed
500mm/sec
Resolution
0.01mm
Repeatability
+/-0.01mm
Display
5.7’ LCD
Drive mode
Micro Stepping Motor
Power
220V /110V
Working enviroment
Temperature:5-40 degrees Celsius
Humidity:20-90%RH
Size(L*W*H)
460x450x480mm
Weight
70KG
Eseries Glue Machine
Applicable glue:
Silicon, UV glue, AB glue, epoxy resin, instant glue, EMI conducting resin, sealant, hot glue, grease, red gum , solder paste, thermal grease, solder grease, lacquer, screw fixing agent.
Specifications:
Model
YS-D331E
YS-D441E
YS-D551E
YS-D461E
Working area
300*300*100
400*400*100
500*500*100
400*600*100
Control system
Independent R D
Driver
Stepper motor+sliver guideway+timing belt
Repeatability
+/-0.02-0.05mm
Air pressure
0.4-0.7Mpa
Speed
500mm/s
Power
220/110V 50/60HZ 350W
Max load
XYZ 10kg
Display
5.7inch screen
Programme method
Screen operation /connect to PC
File total
Number unlimited,16M
I/O signal
16 inputs/16 outputs
Weight
35kg
45kg
55kg
65kg
Size
680*570*680
780*670*680
880*770*680
Advantages:
1. Full-automatic glue dispenser can dispense through 3D and 4D path. It can quickly draw dot, line circle and all kinds of irregular figures on the surface, vertical plane, gap and spherical surface.
2. Graphics import or machine screen edit, easy to operate with high precision.
3. Big scale workstation can place multiple products, which is more efficient. Workstation can be customized according to the size of product.
4. Glue dispenser can be equipped with several dispensing heads and operate at the same time, greatly increasing dispensing efficiency.
5. Glue dispenser is applicable for all kinds of glue. Dispensing liquid such as oil paint and printing ink needs to equip additional high-capacity pressure barrel to reduce glue changing time.
6. We are a manufacturer with more than 20 years of production experience. We have excellent R&D and production ability, sound QC system and perfect after-sale service. Robotsung has become a nationwide famous brand in China.
Glue Machine pictures:

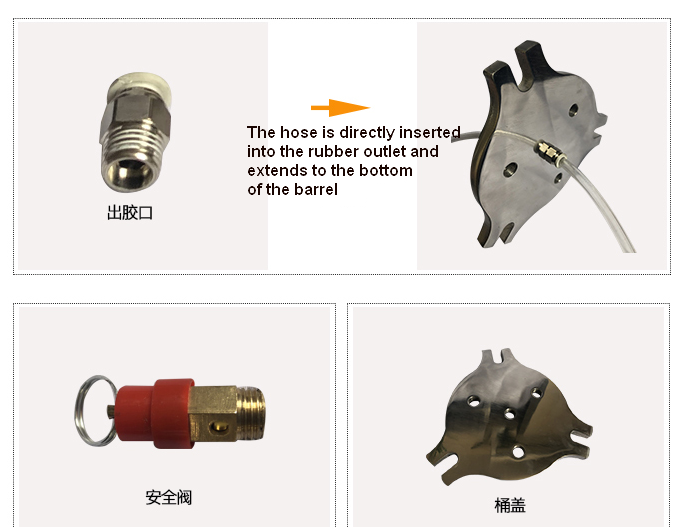

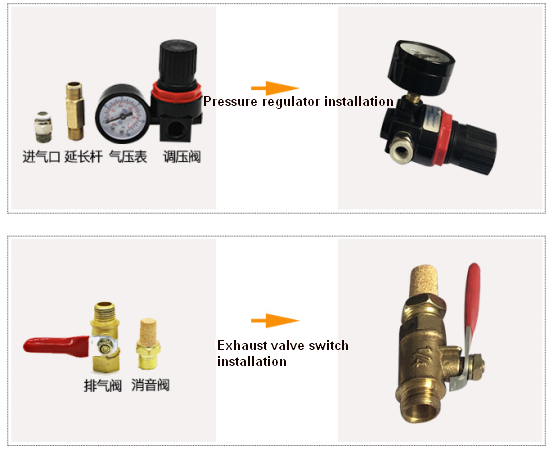

Tank and valve

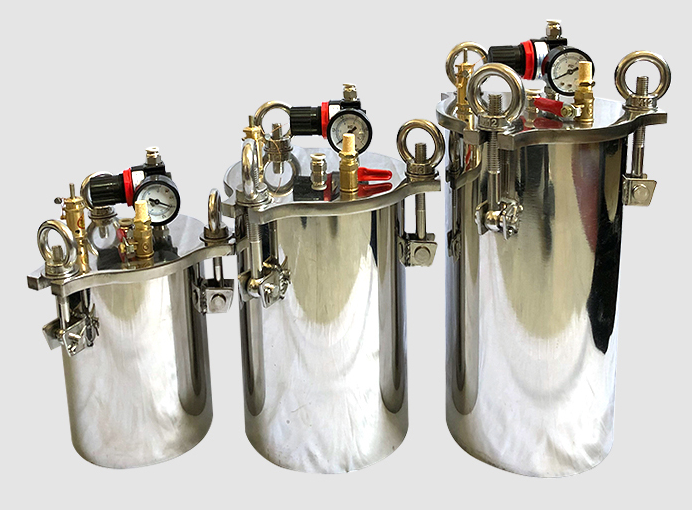

Tank option:5L,10L,20L,50L

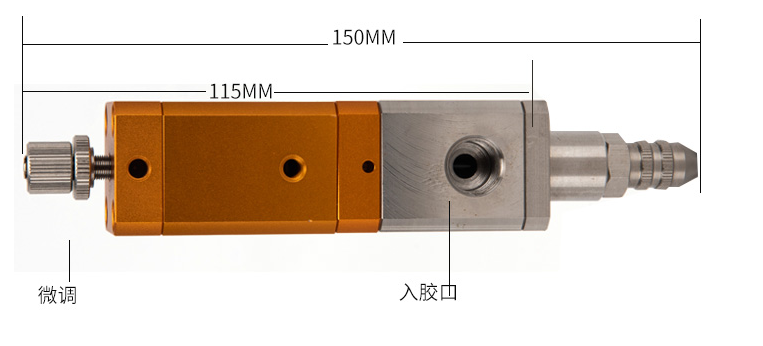

Suction back valve:
OEM/ODM service offered
We are capable to manufacturedispensing equipment and liquid dispenser according to customer's drawings or samples. We are insisting on providing top quality products with competitive price. Please feel free to contact us. Welcome your inquiry.
Terms and conditions
Production lead time : 5-7 days
Payment terms:T/T in advance
other payment term can be discussed
Shipment term:Ex-work,or other shipping terms like FOB,CIF terms can be discussed.
Clear Epoxy Dome Sticker Making Machine Two Component Glue Doming Machine Images
