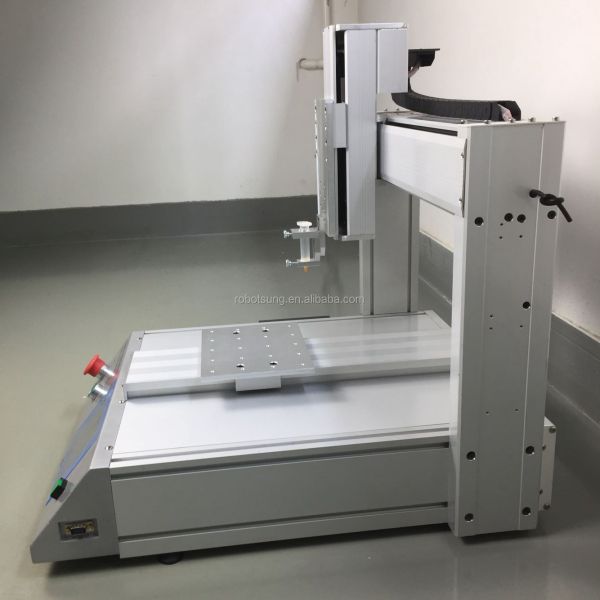

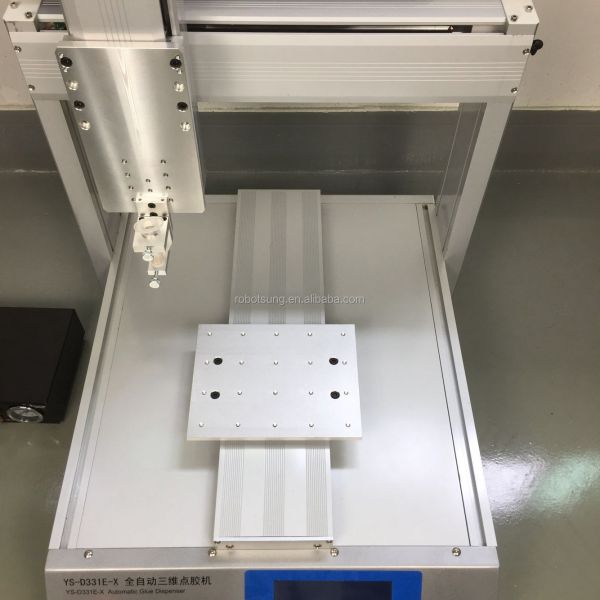

Automatic 3 Axis CNC Robot Liquid Glue Dispensing Machine Solder Paste Dispenser with Needle for Keyboard

Name: Automatic 3 Axis CNC Robot Liquid Glue Dispensing Machine Solder Paste Dispenser with Needle for Keyboard
Brand: Robotsung
Price: 1 USD

Quality Automatic 3 Axis CNC Robot Liquid Glue Dispensing Machine Solder Paste Dispenser with Needle for Keyboard for sale

voltage : 220V/110V

Programe method : screen operation/connect to PC

MOQ : 1 set

Price : $1,250-1,350 / set

Weight : 35kg, 35 KG

packaging type : Cartons

machinery test report : Not Available

automatic grade : Automatic

Showroom Location : None

Driver : Stepper motor+sliver guideway+timing belt

Type : Gluing Machine

Warranty of core components : 1 Year

Brand Name : Robotsung

Product name : High-precision Dispensing robot

Control system : Independent R D

video outgoing-inspection : Provided

packaging material : Wood

Application : Medical

core components : Motor

Place of Origin : Guangdong, China

Material : Aluminum

Condition : New

application : Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles

driven type : Pneumatic

dimension(l*w*h) : 680*570*680

warranty : 1 Year

key selling points : High-Accuracy

Repeatability : +/-0.02-0.05mm

After Warranty Service : Video technical support

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Contact Now

Company Profile

Automatic 3 Axis CNC Robot Liquid Glue Dispensing Machine Solder Paste Dispenser with Needle for Keyboard

Product Description

Advantages:

1. Full-automatic glue dispenser can dispense through 3D and 4D path. It can quickly draw dot, line circle and all kinds of
irregular figures on the surface, vertical plane, gap and spherical surface.
2. Graphics import or machine screen edit, easy to operate with high precision.
3. Big scale workstation can place multiple products, which is more efficient. Workstation can be customized according to the size
of product.
4. Glue dispenser can be equipped with several dispensing heads and operate at the same time, greatly increasing dispensing
efficiency.
5. Glue dispenser is applicable for all kinds of glue. Dispensing liquid such as oil paint and printing ink needs to equip
additional high-capacity pressure barrel to reduce glue changing time.
6. We are a manufacturer with more than 20 years of production experience. We have excellent R&D and production ability, sound QC
system and perfect after-sale service. Robotsung has become a nationwide famous brand in China.
Application:
1. Electro-acoustic industry: horn, loudspeaker, buzzer, earphone.
2. Inductance industry: small transformer, SMD transformer, inductance, relay, small coil motor.
3. Communication industry:keypad, phone shell,interphone,telephone, fax machine.
4. Computer, digital products, digital camera, MP3, MP4, electronic toy, chassis adhesion.
5. Switch, connector, wire rod, plug cable.
6. Electronics: electron component, integrated circuit, circuit board solder paste, LCD screen, etc.
7. Optics: optical lenses, magnetic head.
8. Mechanical hardware, battery box sealing, label fixing adhesion, car parts coating.
9. Food packaging.
10. LED industry.

Applicable glue:
Silicon, UV glue, AB glue, epoxy resin, instant glue, EMI conducting resin, sealant, hot glue, grease, red gum , solder paste,
thermal grease, solder grease, lacquer, screw fixing agent.

Specification

Model	YS-D331E	YS-D441E	YS-D551E	YS-D461E
Working Area	300300100	400400100	500500100	400600100
Control System	Independent R D
Driver	Stepper Motor+ Silver Guideway+Timing Belt
Repeatablity	+/-0.02-0.05mm
Air Pressure	0.4-..7Mpa
Speed	500mm/s
Power	220V/110V 50/60HZ 350W
Max Load	XYZ 10KG
Display	5.7 inch Screen
Program Method	Screen operation /connect to PC
File Total	Number unlimited,16M
I/O Signal	16 inputs/16 outputs
Weight	35KG	45KG	55KG	65KG
Size	680570680	780670680	880770680

Packing & Delivery

Package will be hard carton with Foam Filled, Wood Package if nessesory.

Lead Time: 3-5 Days, if Customized, be negotiated.

FAQ

1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can beshipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, suchas ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.

2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.

Take a video of the normal operation of the machine to you, and then confirm the delivery

3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine. Video for you to make samples

4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication

5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
