Auto Soldering Machine Providing Stable Temperature Control and Fast Soldering Speed for Industrial Electronics Assembly

Name: Auto Soldering Machine Providing Stable Temperature Control and Fast Soldering Speed for Industrial Electronics Assembly
Brand: Robotsung
Price: 2 USD

Quality Auto Soldering Machine Providing Stable Temperature Control and Fast Soldering Speed for Industrial Electronics Assembly for sale

Certification : CE

Voltage : AC 220V/50hZ

Maximum speed : 500mm/s

usage : soldering parts on pcb

air source : Clean 0.4-0.6 kpa

MOQ : 1 set

rated duty cycle : 24 Hour Continually

movement stroke : 300*300*300*100*360°

Maximum load of worktable : 10kg

Place of Origin : Guangdong, China

Packaging Details : Wooden Case

warranty : 1 Year

Brand Name : Robotsung

Repeatability : ±0.02mm

Payment Terms : T/T,Western Union

Delivery Time : 15-25 Business Days

Model Number : YS-HX331E

Price : $2,500-2,600 / set

weight (kg) : 95

Contact Now

Auto Soldering Machine Providing Stable Temperature Control and Fast Soldering Speed for Industrial Electronics Assembly

basic parameter	machine model	YS-HX331E
	Size	671551612mm
	power	AC 220V/50hZ
	air source	Clean 0.4-0.6 kpa
Temperature Control System	heating	vortex 200w-300w
	temperature range	180-450℃
	Number of irons	1
	Number of axes	4
movement system	diver system	Stepping machine, Hiwin guide rail, timing belt
	movement stroke	300300300100360°
	Maximum speed	500mm/s
	Repeatability	±0.02mm
	Maximum load of worktable	10kg
soldering range	Use wire diameter range	0.6mm-1.5mm
soldering range	Single point welding time (related to the size of the welding spot)	0.2-100s

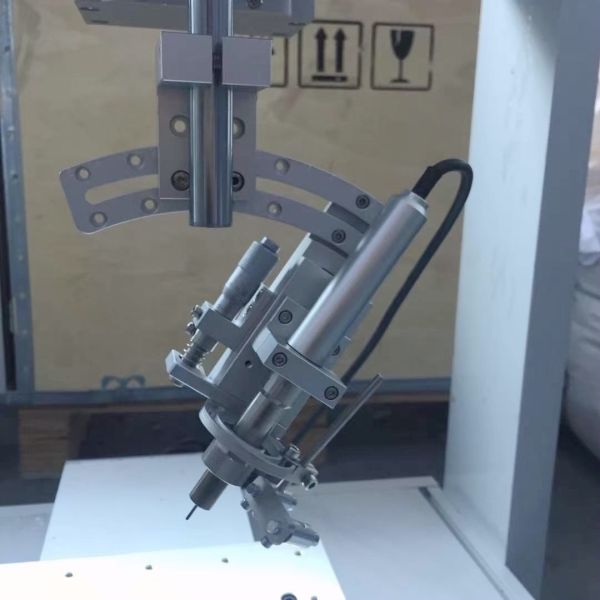

Auto Soldering Machine Providing Stable Temperature Control and Fast Soldering Speed for Industrial Electronics Assembly Images
