Technical parameters
Screw capacity of feeding device : M2X6 5000PCS
Efficiency: 50-70PCS/MIN(Depends on screw length)
Voltage:220V/110V 50HZ/60HZ
Screw-feeding Speed : 0.5s/pc
Power: 30W
Air pressure: 2-3KGF
Weight: 35KG
Feeding device Size: 370*250*190MM
Noise: lower than 65dB
Conveying distance: 1-4Meters
Application:
1. Applicable screws: M2-M6.
2. Applicable Screw Head: for any universal type such as straight slot, cross, triangle, groove, trox, hexagonal, H head, etc.
3. Surface Treatment of screw: electrolytic nickel plating, color zinc plating, white zinc plating, and copper plating, etc.
4. Screw materials: iron, copper, stainless steel, etc.
5. Materials of products to be screwed: plastic, iron, aluminum, etc.
6. Applicative Industries: mobile photo, hard disk, keyboard, toy, LCD/LED modules, communication equipment, electrical
appliances, auto parts and so on.
Structure

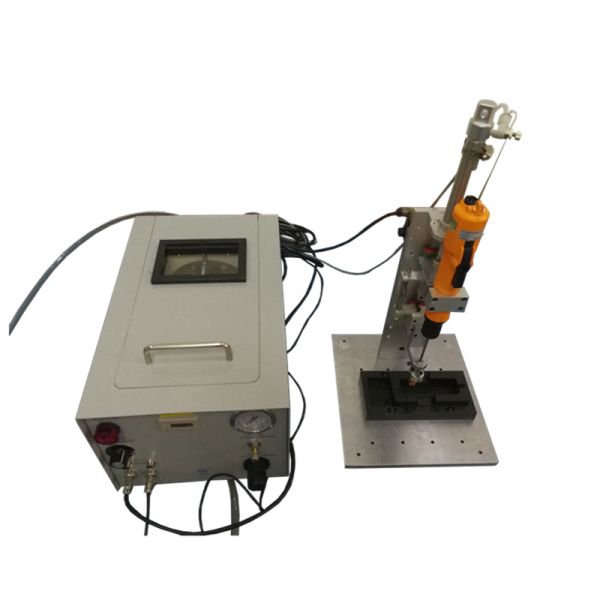

YS-L601 desktop screwdriver consists of feeding system, operating platform and screwdriver.
1. The feeding system line up and distribute the screws, and send the screw to electric screwdriver through pipe
2. Operating platform. Use pedal to control electric screwdriver of up and down.
3. Electric screwdriver tightens the screw into product automatically.
YS-L601 desktop screwdriver machine only need putting product on platform by hand. And then step/press on pedal. Machine will
tighten screw automatically. At last, take out the finished product and put the next one by hand.
Advantage
1. Convenient. Only need putting product on platform by hand. And then step on pedal. Machine will tighten screw automatically. At
last, take out the finished product. It reduces the labor intensity greatly.
2. Fast. Save much time for moving hand, fetching screws, moving screws, positioning screws, etc. No need to wait.
3. Neat. No need to fetch screws by hand, thus won’t cause the secondary pollution of screws by stain or sweat. Screws are not
easy to rust.
Compared with traditional handheld screwdriver machine
1. No need holding screwdriver by hand. It reduces the labor intensity
2. No need positioning screw hole by hand. It saves working time better. Only need the jig to position screws.
3. Scope of application increased. YS-L601 desktop screwdriver machine apply to deep screw hole, big and heavy screws.
4. More favorable.
