Automatic screwdriver machine puts the automatic screw feeding mechanism together with the electric screwdriver in order to achieve the complement of screw transmission and lock, which can greatly improve the production efficiency and save manpower. Once the screwdriver is lifted after fastening a screw, another screw will be sent continuously to continue the operation, which is particular suitable for the work piece of multi-station with the same specification.
Features:
1. Wide universality, small in size, can cooperate with production line, convenient for product replacement.
2. High efficiency, the number of electric screwdriver of the Z axis is customizable according to customer’s requirements. Several electric screwdrivers can work at the same time, which is the work of a number of workers. For example, a desktop automatic screw locking machine with 4 electric screwdrivers can lock continually with 4 screws at one time; it can lock several products at the same time.
3. The Y axis can be made into double-station (that is, double Y axis),so the operator can load alternately.
4. Reduce the labor intensity of workers.
5. High degree of automation, easy operation which the staff can master and debug quickly. A worker can manage several machines at the same time.
6. Accurate torsion, convenient adjustment, and the quality of lock is guaranteed.
7. The air-blowing screw is transmitted to the month of the electric screwdriver directly compare with the air-breathing ones, which saves the time of back and forth and ensures the efficiency.
8. With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing, which will reduce leak screws of the products and increase the qualified rate.
Specification:
Model
YS-L542
construction
Weight
80kg
Machine size
680*750*700(mm)
Working area
500*400*400 customized by product
Voltage
AC 220V/110V 50HZ
Power
360W
Gas source
>0.5MPa
Gas consumption
10m³/hour
frame
High-quality aluminum profile
Drive mode
Closed-loop stepper motor+upper silver guide rail
Control Specification
System control
Embedded real time control
Display
LCD Display,show datas,5.7inch touch screen
File Save
File format, Unlimited file number,each file max 6000 points,Total byte 64M
I/O
16inputs/16outputs
Outer control USB
RS232
Machine start
Auto and single step
Buzzer
warning light and buzzing sound
Auto Screw Feeder
Auto screw Feeder
Beside the screwdriver machine
Screw size
Screw length 1.3 times more than screw head diameter. Total screw length below 40mm. M1 to M6 screw
Number
1 set
Screw input method
adsorption
Screw Pocket volume
About 4000pcs(M3 screw)
Screw scope
M1.0-M10
Application:
This equipment is used for locking screws applied in electronics, household appliances, Auto, toy industry and so on, which can greatly improve the production efficiency. Please provide relevant product information and locking requirements of you need more details.
Buying Guides
What screws fit the machine?
The automatic nut and screw feeding and driving systems is also for nuts, bolts, push pins, and plastic fasteners.
How can you choose auto screwdriver machine and give you suggestions? we need to know
1.Screw detailed size:
2.Screw positions on products
The distance and height from Screw head edge to the product edge raised position
Company Information
We are a more than 20 years factory.Now has 15 engieers and QC ,each machine is checked carefully and tested well before shippment.More than 1500M2 factory make our factory and office together,it reduce the sales,engieers and production communication time and leadtime.Every problem is resolved quickly.
Packaging & Shipping
Our Services
One year warranty for the machine and two years for the motor
We will support our clients not only on product, but also on technical instruction online ALL THE TIME when customers need.
We're Confident in Quality. But Your Satisfaction Proves More !
FAQ
1,Q: Why choose us?
Competitive price and excellent quality,professional technical team with technical knowledge and solution will be provided whether you buy our products or not.
2,Q: How about your package?
Carton or wooden case,depend on item weight or customer requirements, both carton and wooden case package is free.
3,Q: What is your transport way?
DHL, UPS, FEDEX or shipping by sea etc,we have normal agent of them. These make us check the shipping cost very fast and economic.
4,Q: What is your guarantee and after-sales service?
One year warranty for the machine and two years for the motor We will support you not only on product guarantee,also on technical instruction online.
5,Q: Do you accept PayPal?
Yes, we do. Our term of payment are TT, PayPal, Western Union etc., other special way can be negotiated.
CONTACT

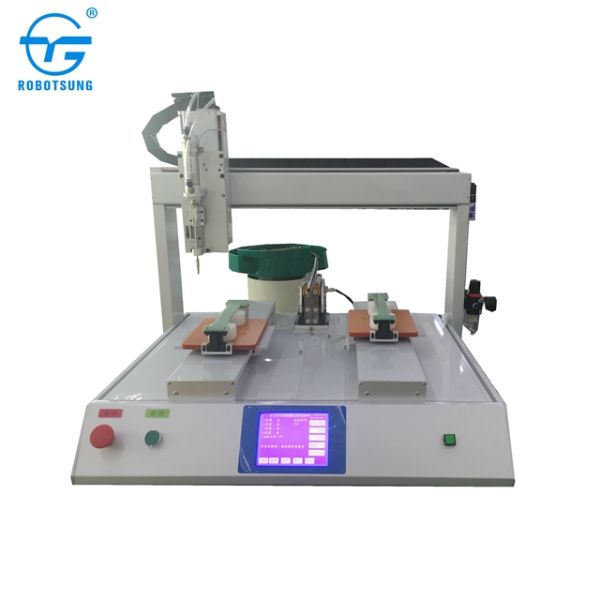

Automatic Headless Screw Driver Machine 220V Core Motor and Engine Product Assembly Screw Tightening Machine Images
